RCV001

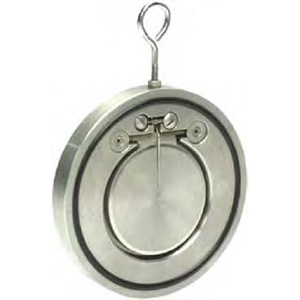

Check Valve DIN Wafer type Stainless Steel PN16/PN25
REEP brand RCV001 model wafer type single door check valve with stainless steel disc, disc and flang sealing by EPDM/NBR O-ring, pressure rating PN16/25, suitable for mounting between flanges acc. to
Fig. RCV001A (Rubber seated)
Fig. RCV001B (Metal seated)
Size: DN40-DN400
Pressure Rating: PN16-PN25
Temperature: Max. 120°C
Material Specification:
Body: Stainless Steel
Disc: Stainless Steel
Hinge pin & Spring: Stainless Steel
Disc seal: EPDM/NBR
Flange seal: EPDM/NBR
Custom made available
