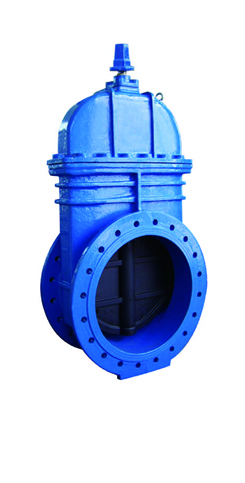

RGV020
DIN3352 F4 Resilient Seated NRS Flanged ends Ductile Iron PN10/PN16
REEP brand RGV020 model DIN3352/EN1171 resilient gate valve, pressure rating PN 10/16, bolted bonnet, non-rising stem,Face to Face according to EN 558-1, 14 series (DIN3202 F4).
Nominal diameter: DN 40 - 1000
Pressure rating:PN 10 - 16
Max. 120 °C
Face To Face: EN 558-1, 13(BS5163)EN 558-1, 14 (DIN3352 F4)
Material specification
Body and bonnet/Wedge: DI(GGG50 (EN and/or (DIN)))
Rubber/Bonnet gasket/O-ring: EPDM
Handwheel/Cap nut: DI
Stem: St.St(420S37)
Pressure and temperature range
Size water
DN40 thru DN 1000 16 bar – 120 °C
