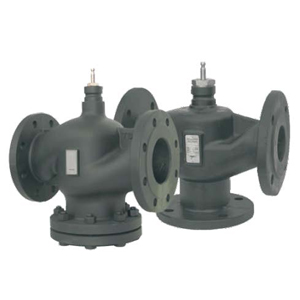

RMU035
Electrical Two-way/Three-way Control Valves Flanged ends Ductile Iron PN16/PN25
REEP brand RMU035 model Electrical Two-way/Three-way Control Valves, pressure rating PN 16/25,are extensively applied to HVAC water systems, boiler systems, heat exchange systems or AHU steam systems
Nominal diameter: DN 50 -400
Pressure rating:PN 16 - 25
Max. 180 °C
Material Specification
Body and bonnet:DI(400-15(GGG40)(EN and/or (DIN)))
Disc/Stem/Spring:St.St
Sealing:FKM/PTFE
1,Equal percentage control characte-ristic achieves high control precision
2,Electronic Presetting function facilitates on-site commission.
3,Automatic fault detection and alarm functions
4,With V-shaped sealing ring and stainless steel spring compensation
5,function, higher abrasion resistance and longer life
6,Flow deviation 土5%
Pressure and temperature range
Size water
DN50 thru DN400 25 bar – 180 °C
