RGV010
BS5163 Resilient Seated NRS Flanged ends PN25

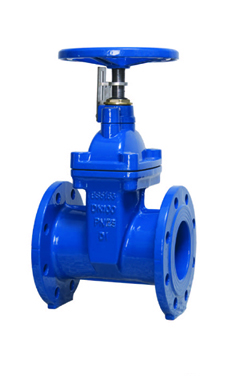

REEP brand RGV010 model BS5163 resilient gate valve, pressure rating PN 25, bolted bonnet, non-rising stem,Face to Face according to EN 558-1, 13 series (BS5163).
Nominal diameter:DN 40 - 300
Pressure rating:PN 25
Max. 120 °C
Face To Face: EN 558-1, 13(BS5163)
Material specification
Body and bonnet/Wedge: DI(500-7 (EN and/or (BS))
Rubber/Bonnet gasket/O-ring: EPDM
Handwheel/Cap nut: DI
Stem: St.St(420S37)
Pressure and temperature range
Size water
DN40 thru DN 300 25 bar – 120 °C
